P30P47A12P1-120

Definite Purpose Magnetic Contactor

P30P47A12P1-120 Features

* AC and DC coils.

* Available with auxiliary switch.

* Variety of main contact terminals.

* For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate

* V

P30P47A12P1-120 Datasheet (146.72 KB)

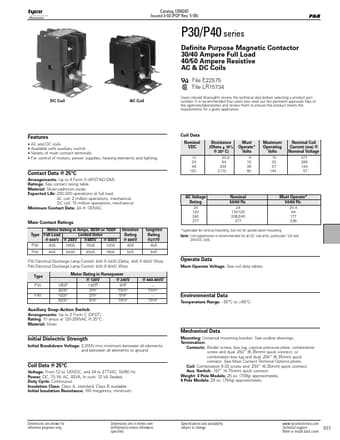

Preview of P30P47A12P1-120 PDF

Datasheet Details

Part number:

P30P47A12P1-120

Manufacturer:

Tyco

File Size:

146.72 KB

Description:

Definite purpose magnetic contactor.
www.DataSheet.co.kr Catalog 1308242 Issued 3-03 (PDF Rev. 5-05) P&B P30/P40 series Definite Purpose Magnetic Contactor 30/40 Ampere Full Load 40/50.
