P30P47D12P1-24, P30 Datasheet - Tyco

P30P47D12P1-24 - Definite Purpose Magnetic Contactor

www.DataSheet.co.kr Catalog 1308242 Issued 3-03 (PDF Rev.

5-05) P&B P30/P40 series Definite Purpose Magnetic Contactor 30/40 Ampere Full Load 40/50 Ampere Resistive AC & DC Coils File E22575 File LR15734 DC Coil AC Coil Users should thoroughly review the technical data before selecting a product part number.

It is recommended that users also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application.

P30P47D12P1-24 Features

* AC and DC coils.

* Available with auxiliary switch.

* Variety of main contact terminals.

* For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate

* V

P30_Tyco.pdf

This datasheet PDF includes multiple part numbers: P30P47D12P1-24, P30. Please refer to the document for exact specifications by model.

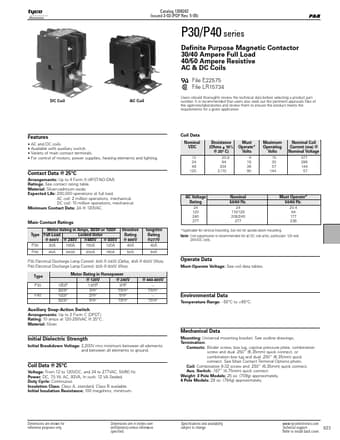

P30P47D12P1-24 Datasheet Preview Page 2 P30P47D12P1-24 Datasheet Preview Page 3

Datasheet Details

Part number:

P30P47D12P1-24, P30

Manufacturer:

Tyco

File Size:

146.72 KB

Description:

Definite purpose magnetic contactor.

Note:

This datasheet PDF includes multiple part numbers: P30P47D12P1-24, P30.
Please refer to the document for exact specifications by model.
