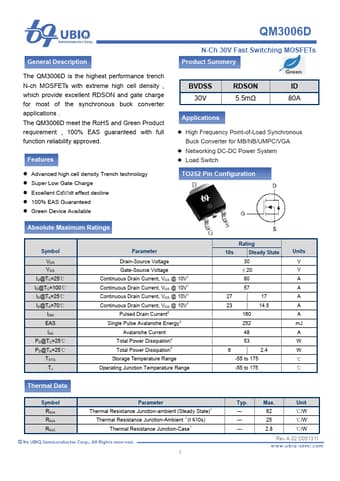

QM3006D Datasheet - UBIQ

QM3006D N-Ch 30V Fast Switching MOSFETs

N-Ch 30V Fast Switching MOSFETs Product Summery The QM3006D is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM3006D meet the RoHS and Green Product requiremen.

QM3006D Features

* BVDSS 30V RDSON 5.5mΩ ID 80A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power System z Load Switch z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z G
