QM3006N3 Datasheet - UBIQ

QM3006N3 N-Ch 30V Fast Switching MOSFETs

The QM3006N3 is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM3006N3 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function relia.

QM3006N3 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings N-Ch 30V Fast Switching MOSFETs Product Summery BVDSS 30V RDSON 7mΩ ID 60A Applications z High Frequency Point-of-Load

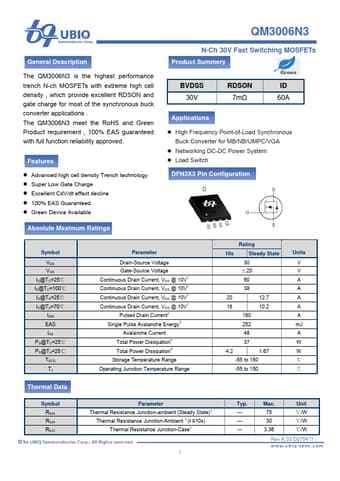

QM3006N3 Datasheet (301.77 KB)
