QM3016S

N-Ch 30V Fast Switching MOSFET

QM3016S Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 30V RDSON 4mΩ ID 15A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networki

QM3016S General Description

The QM3016S is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM3016S meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliabili.

QM3016S Datasheet (332.19 KB)

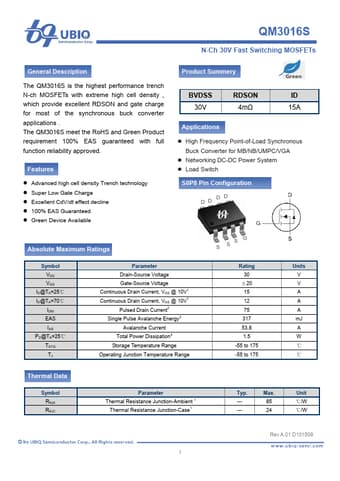

Preview of QM3016S PDF

Datasheet Details

Part number:

QM3016S

Manufacturer:

UBIQ

File Size:

332.19 KB

Description:

N-ch 30v fast switching mosfet.

📁 Related Datasheet

QM3016AD N-Ch 30V Fast Switching MOSFETs (UBIQ)

QM3016AM3 N-Channel 30V Fast Switching MOSFET (uPI Semiconductor)

QM3016AM6 N-Ch 30V Fast Switching MOSFETs (UBIQ)

QM3016D N-Ch 30V Fast Switching MOSFET (UBIQ)

QM3016M3 N-Ch 30V Fast Switching MOSFETs (UBIQ)

QM3016M6 N-Ch 30V Fast Switching MOSFET (UBIQ)

QM3016N3 N-Ch 30V Fast Switching MOSFET (UBIQ)

QM3016P N-Ch 30V Fast Switching MOSFET (UBIQ)

QM3016U N-Ch 30V Fast Switching MOSFETs (UBIQ)

QM3010B N-Ch 30V Fast Switching MOSFETs (UBIQ)

TAGS

QM3016S N-Ch 30V Fast Switching MOSFET UBIQ

Image Gallery

QM3016S Datasheet Preview Page 2 QM3016S Datasheet Preview Page 3
