QM3010K

N-Channel MOSFET

QM3010K Datasheet (227.39 KB)

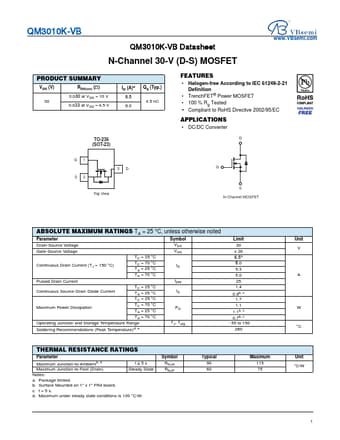

Preview of QM3010K PDF

Datasheet Details

Part number:

QM3010K

Manufacturer:

VBsemi

File Size:

227.39 KB

Description:

N-channel mosfet.
QM3010K-VB QM3010K-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.030 at VGS = 10 V 30 0.033 at V.

QM3010K Features

* Halogen-free According to IEC 61249-2-21 Definition

* TrenchFET® Power MOSFET

* 100 % Rg Tested

* Compliant to RoHS Directive 2002/95/EC APPLICATIONS

* DC/DC Converter D G1 S2 3D Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless
