QM3010J

N-Ch 30V Fast Switching MOSFETs

QM3010J Datasheet (348.06 KB)

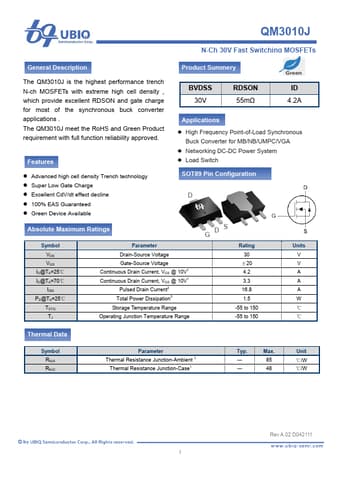

Preview of QM3010J PDF

Datasheet Details

Part number:

QM3010J

Manufacturer:

UBIQ

File Size:

348.06 KB

Description:

N-ch 30v fast switching mosfets.

QM3010J Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available BVDSS 30V RDSON 55mΩ ID 4.2A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networking DC-DC Power

QM3010J General Description

Product Summery The QM3010J is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM3010J meet the RoHS and Green Product requirement with full function reliability.
