UM6116-3 - 2K x 8 High Speed CMOS SRAM

Product Overview

UMC

📥 Download Datasheet

UM6116-3 2K x 8 High Speed CMOS SRAM by UMC - Datasheet Preview — Datasheet preview – UM6116-3

Datasheet Details

Part number	UM6116-3
Manufacturer	UMC
File Size	183.43 KB
Description	2K x 8 High Speed CMOS SRAM
Datasheet	UM6116-3 Datasheet
Note	This datasheet PDF includes multiple part numbers: UM6116-3, UM6116-2. Please refer to the document for exact specifications by model.

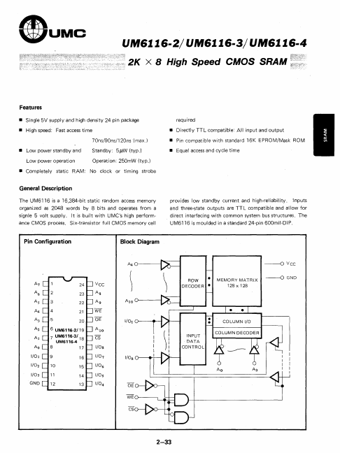

Additional preview pages of the UM6116-3 datasheet.

Product details

Description

The UM6116 is a 16,384-bit static random access memory organized as 2048 words by 8 bits and operates from a sign Ie 5 volt supply.

Features

Single 5V supply and high density 24 pin package.
High speed: Fast access time 70ns/90ns/120ns( max. ).
Low power standby and Standby: 5JlW (typ. ) Low power operation Operation: 250mW (typ. ).
Completely static RAM: No clock or timing strobe required.
Directly TTL compatible: All input and output.
Pin compatible with standard 16K EPROM/Mask ROM.
Equal access and cycle time General.
