UM611 - DOUBLE CONSTANT VOLTAGE CONTROLLERS

Datasheet Summary

Description

The UTC UM611 is a highly integrated solution for double constant voltage application.

The UTC UM611 contains two voltage reference (0.6V and 0.8V) and two operational amplifiers.

Features

  • S.
  • Constant voltage control.
  • Low supply current: 0.45mA (VCC=5V).
  • Easy compensation.
  • Precision Internal Voltage Reference: 0.6V/0.8V.
  • Low external component.
  • Operating power supply : 3V~20V.

📥 Download Datasheet

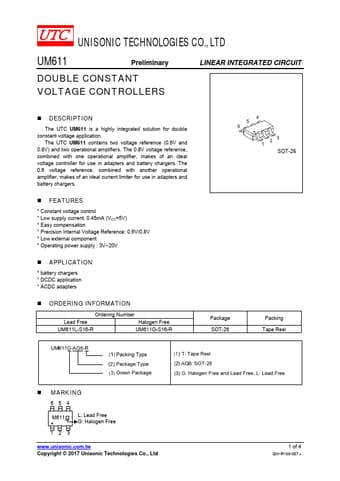

Datasheet preview – UM611
