UM6114 - 1K x 4 CMOS SRAM

Datasheet Summary

Description

The UM6114 is a 4,096 bit high speed and low power static random access memory organized as 1,024 words by 4 bits using CMOS technology, and operates from a single 5-volt supply.

Features

  • High speed-45/55/70/90 ns (max. ).
  • Low power dissipation: 50mW (Typ. ) operating 5/NV (Typ. ) standby.
  • Single 5V power supply.
  • Fully static operation.
  • All inputs and outputs directly TTL compatible.
  • Three state outputs.
  • Data retention supply voltage: 2.0-5.5V General.

📥 Download Datasheet

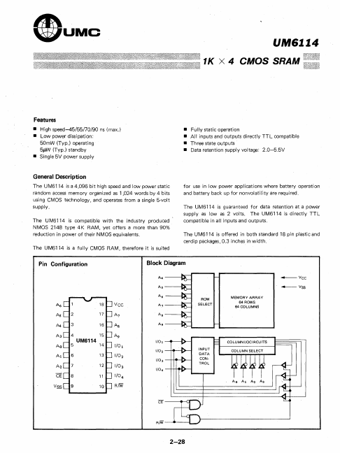

Datasheet preview – UM6114

Datasheet Details

Part number UM6114
Manufacturer UMC
File Size 190.71 KB
Description 1K x 4 CMOS SRAM
Datasheet download datasheet UM6114 Datasheet
Additional preview pages of the UM6114 datasheet.
