UM6116-4, UM6116-2 Datasheet - UMC

UM6116-4 2K x 8 High Speed CMOS SRAM

The UM6116 is a 16,384-bit static random access memory organized as 2048 words by 8 bits and operates from a sign Ie 5 volt supply. It is built with UMC's high performance CMOS process. Six-transistor full CMOS memory cell provides low standby current and high-reliability. Inputs and three-state ou.

UM6116-4 Features

* Single 5V supply and high density 24 pin package

* High speed: Fast access time 70ns/90ns/120ns( max.)

* Low power standby and Standby: 5JlW (typ.) Low power operation Operation: 250mW (typ.)

* Completely static RAM: No clock or timing strobe required

UM6116-2_UMC.pdf

This datasheet PDF includes multiple part numbers: UM6116-4, UM6116-2. Please refer to the document for exact specifications by model.

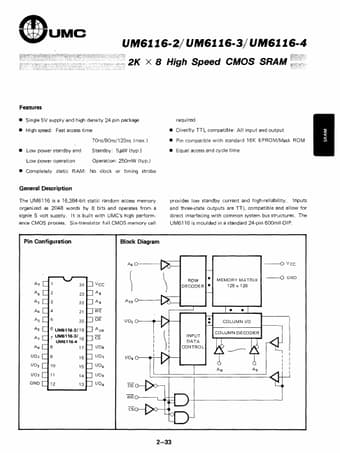

UM6116-4 Datasheet Preview Page 2 UM6116-4 Datasheet Preview Page 3

Datasheet Details

Part number:

UM6116-4, UM6116-2

Manufacturer:

UMC

File Size:

183.43 KB

Description:

2k x 8 high speed cmos sram.

Note:

This datasheet PDF includes multiple part numbers: UM6116-4, UM6116-2.
Please refer to the document for exact specifications by model.
