UM66T08S

Simple Melody Generator

UMC

UM66T08S Features

* n 62-note ROM memory n 1.3V to 3.3V operating voltage and low power con- sumption n Dynamic speaker can be driven with an external NPN transistor. n OSC. resistor is built- in n One-shot mode or level-hold mode can be selected n Power on reset; melody begins from the first note n Direct piezo drive

UM66T08S General Description

The UM66T series is a CMOS LSI designed for use in door bells, telephones and toy applications. It is an on-chip ROM programmed for musical performance. Produced by CMOS technology, the device results in very low power consumption. Since the UM66T series includes oscillator and mode selector circui.

UM66T08S Datasheet (96.89 KB)

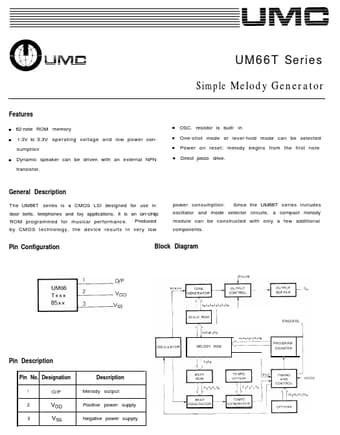

UM66T08S Datasheet Preview — Preview of UM66T08S PDF

Datasheet Details

Part number:

UM66T08S

Manufacturer:

UMC

File Size:

96.89 KB

Description:

Simple melody generator.
