UM82C84A

CMOS Clock Generator Driver

UM82C84A Features

* Generates the system clock for CMOS or NMOS Microprocessors

* Up to 25 MHz operation

* Uses a parallel mode crystal circuit or external frequency source

* Provides ready synchronization

* Generates system reset output from schm itt trigger input

* C

UM82C84A General Description

The UM82C84A is a high performance CMOS clock generator-.driver which is designed to service the requirements of both CMOS and NMOS microprocessors such as the 80C86, 80C88, 8086 and the 8088. The chip contains a crystal controlled oscillator, a divide-by-three counter and complete "Ready" synchroni.

UM82C84A Datasheet (309.27 KB)

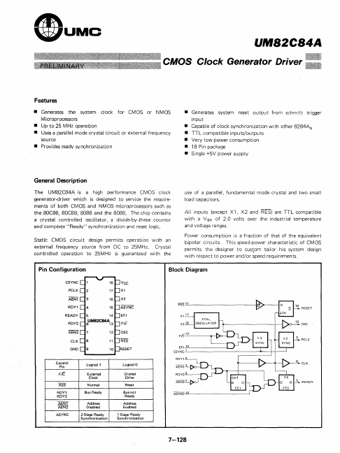

Preview of UM82C84A PDF

Datasheet Details

Part number:

UM82C84A

Manufacturer:

UMC

File Size:

309.27 KB

Description:

Cmos clock generator driver.
