UM8326B, UM8326 Datasheet - UMC

UM8326B - Floppy Disk Data Separator

The Floppy Disk Data Separator provides a low cost solution to the problem of converting a single stream of pulses from a floppy disk drive into separate clock and data inputs for a Floppy Disk Controller.

The FDDS consists primarily of a clock divider, a long-term timing corrector, a short-term tim

UM8326B Features

* Performs complete data separation function for floppy disk drives

* Separates FM or MF M encoded data from any magnetic media

* Eliminates several SSI and MSI devices normally used for data separation

* No critical adjustments required

* Compatible with sta

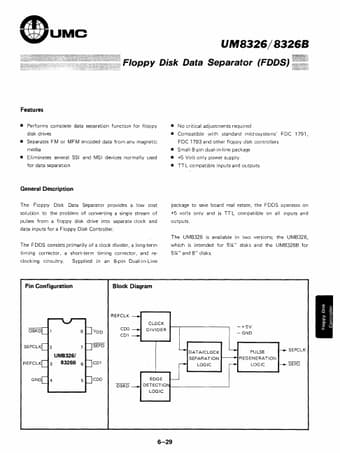

UM8326_UMC.pdf
