UM8329BT

Floppy Disk Interface

UM8329BT Features

* Digital date separator Performs complete data separation function for floppy disk drives Separates FM and MFM encoded data No critical adjustments necessary 5%" and 8" compatible

* Variable write precompensation

* Internal crystal osci lIator circu it

* Track-selec

UM8329BT General Description

The UM8329/B is an MOS integrated circuit designed to complement either the 179X or 8272A (765A) type of floppy disk controller chip. It incorporates a digital data separator, write precompensation logic, and a head-load timer in one O.3-inch wide 20-pin package. A single pin will / configure the ch.

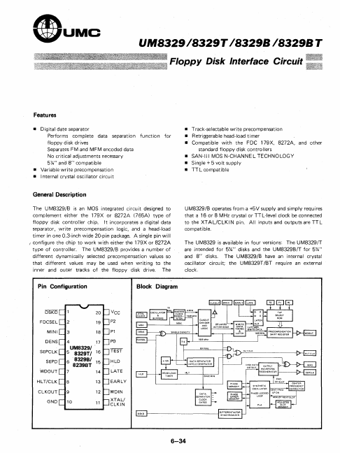

UM8329BT Datasheet (311.52 KB)

Preview of UM8329BT PDF

Datasheet Details

Part number:

UM8329BT

Manufacturer:

UMC

File Size:

311.52 KB

Description:

Floppy disk interface.
