PC817 - photocoupler

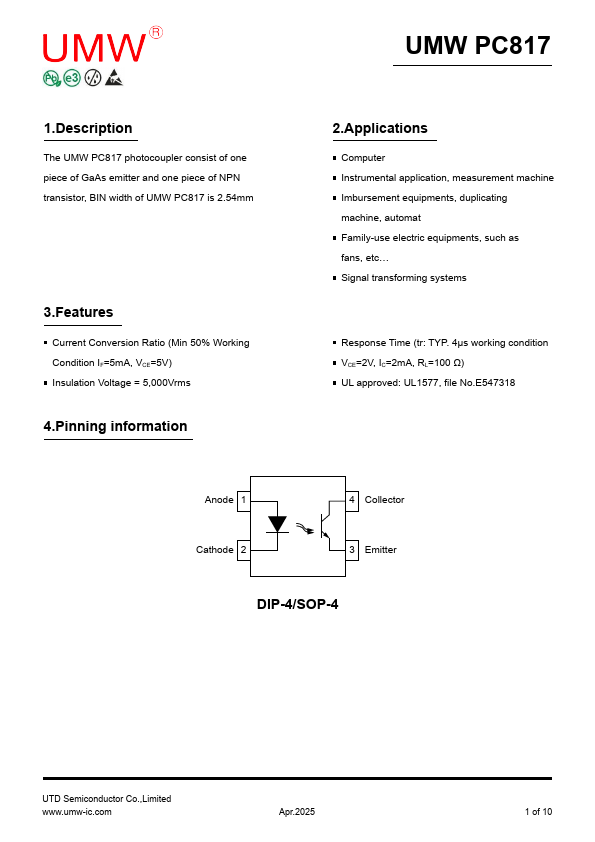

PC817 Description

UMW PC817 1..
The UMW PC817 photocoupler consist of one piece of GaAs emitter and one piece of NPN transistor, BIN width of UMW PC817 is 2.

PC817 Applications

* Computer Instrumental application, measurement machine Imbursement equipments, duplicating machine, automat Family-use electric equipments, such as fans, etc… Signal transforming systems Response Time (tr: TYP. 4μs working condition VCE=2V, IC=2mA, RL=100 Ω) UL approved: UL1577, file No. E547318 Ano

📥 Download Datasheet

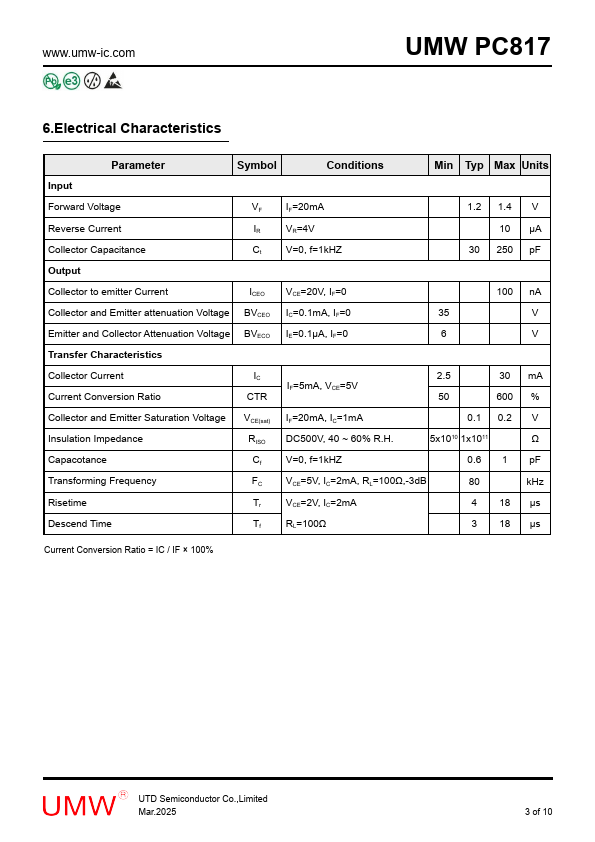

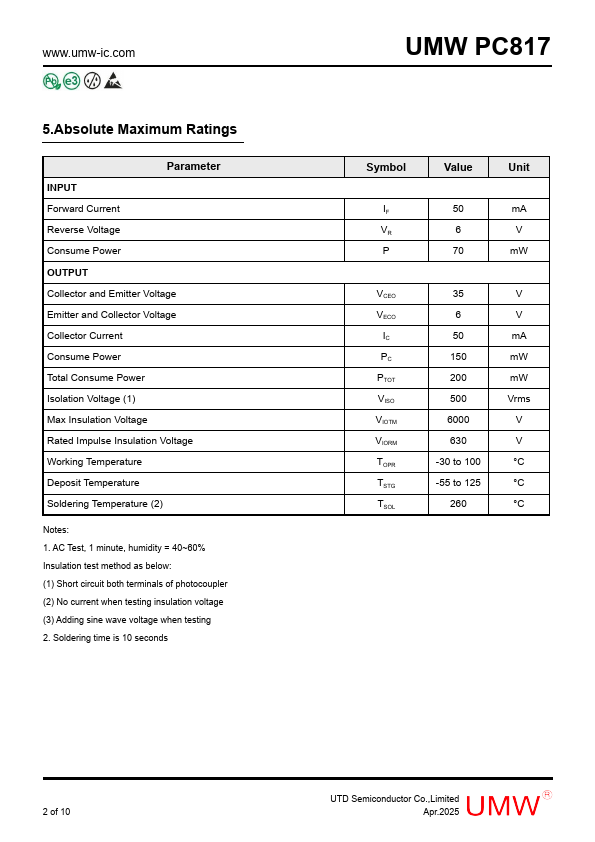

PC817 Datasheet Preview — Preview of PC817 PDF

Datasheet Details

Part number: PC817
Manufacturer: UMW
File Size: 1.09 MB
Datasheet: PC817-UMW.pdf
Description: photocoupler
