XC6206 - Linear voltage regulator

Name: XC6206
SKU: XC6206-1587769

📥 Download Datasheet

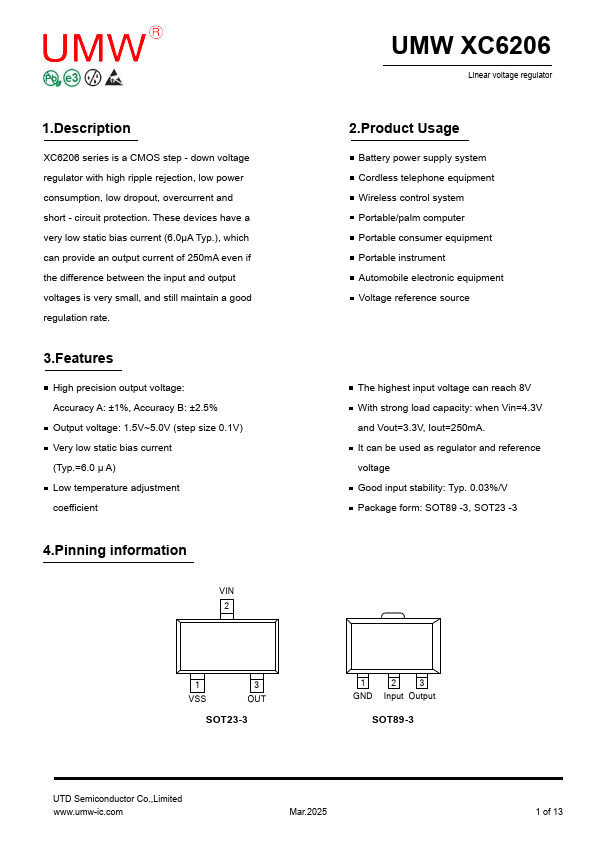

XC6206 Datasheet Preview — Preview of XC6206 PDF

Datasheet Details

Part number	XC6206
Manufacturer	UMW
File Size	2.08 MB
Description	Linear voltage regulator
Datasheet	XC6206-UMW.pdf

XC6206 Product details

Description

XC6206 series is a CMOS step - down voltage regulator with high ripple rejection, low power consumption, low dropout, overcurrent and short - circuit protection.

Features

High precision output voltage: Accuracy A: ±1%, Accuracy B: ±2.5% Output voltage: 1.5V~5.0V (step size 0.1V) Very low static bias current (Typ. =6.0 μ A) Low temperature adjustment coefficient 4.Pinning information VIN 2 UMW XC6206 Linear voltage regulator 2.Product Usage Battery power supply system Cordless telephone equipment Wireless control system Portable/palm computer Portable consumer equipment Portable instrument Automobile electronic equipment Voltage reference source The highest input.
