P2703BAG N-Channel MOSFET

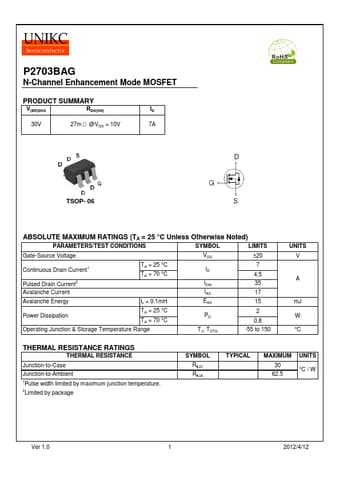

P2703BAG N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 30V 27mΩ @VGS = 10V ID 7A TSOP- 06 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current1 Pulsed Drain Current2 Avalanche Current Avalanche Energy TA = 25 °C TA = 70 °C L = 0.1mH ID IDM IAS EAS 7 4.5 35 17 15 Power Dissipation TA = 25 °C TA = 70 °C Operating Junction & Storage Temperature Range PD TJ, .
