AR3505 35.0 AMP SILICON RECTIFIERS

AR3505 Description

www.DataSheet4U.com AR3505 35.0 AMP SILICON RECTIFIERS THRU AR3510 VOLTAGE RANGE 50 to 1000 Volts CURRENT .

AR3505 Features

* Low forward voltage drop
* Low leakage current
* High reliability
* High current capability 35.0 Ampere AR .185(4.7) .165(4.2) .250(6.4) .235(6.0) MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Slugs: Plated slugs, solderable per MIL

📥 Download Datasheet

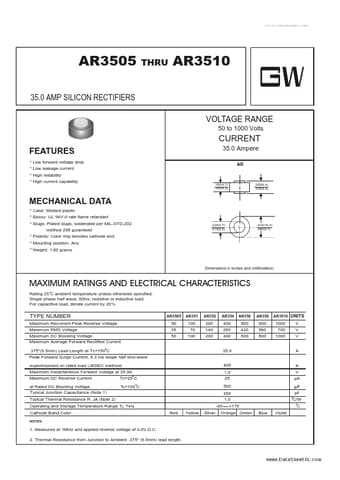

Preview of AR3505 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AR3505
Manufacturer
UNIOHM
File Size
129.02 KB
Datasheet
AR3505_UNIOHM.pdf
Description
35.0 AMP SILICON RECTIFIERS
