BY133G - General Purpose Rectifiers

Datasheet Summary

Features

  • ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified.

📥 Download Datasheet

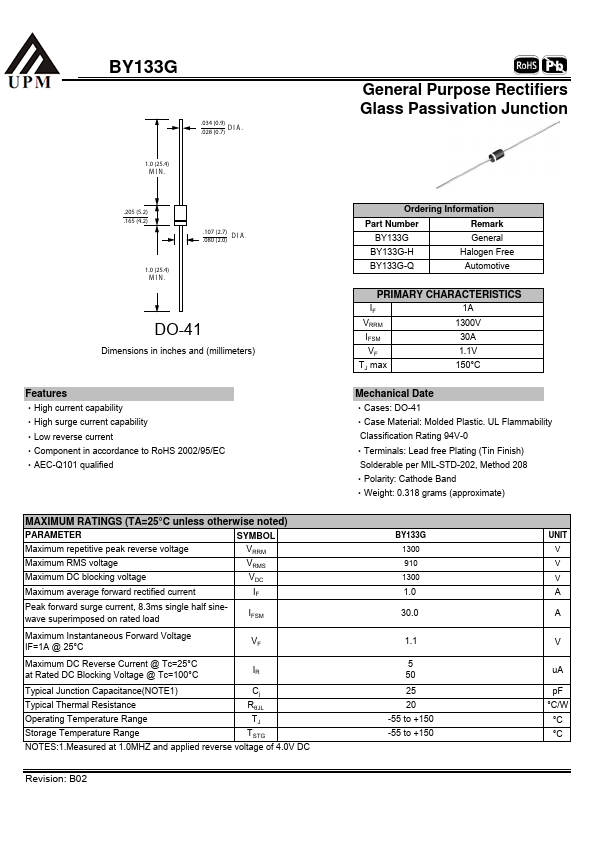

Datasheet preview – BY133G

Datasheet Details

Part number BY133G
Manufacturer UPM
File Size 176.53 KB
Description General Purpose Rectifiers
Datasheet download datasheet BY133G Datasheet

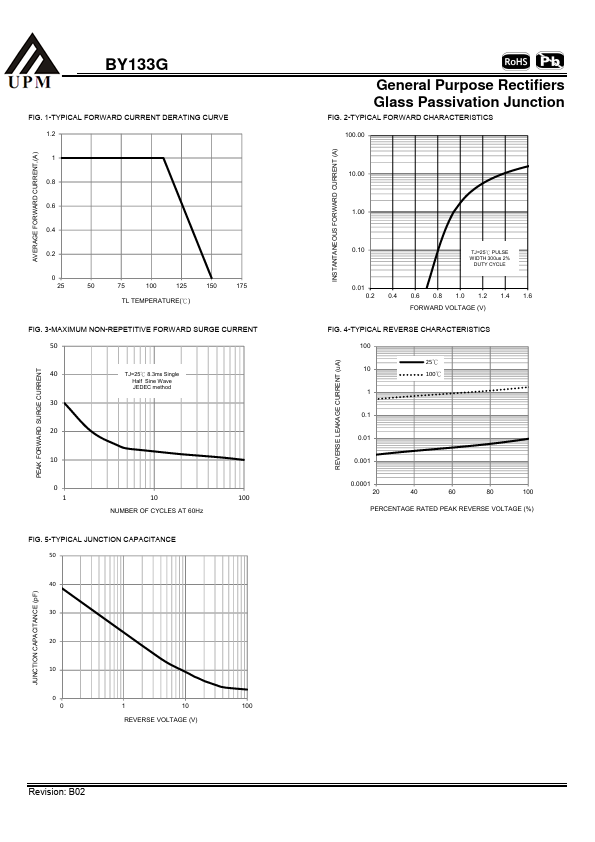

Additional preview pages of the BY133G datasheet.

📁 Similar Datasheet

  • BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (GOOD-ARK Electronics)
  • BY133G - GLASS PASSIVATED JUNCTION BY133G SILICON RECTIFIERS (EIC)
  • BY133G - GLASS PASSIVATED SILICON RECTIFIER (STAR SEA)
  • BY133G - GLASS PASSIVATED JUNCTION RECTIFIER (SEMTECH)
  • BY133G - 1.0 Amp Glass Passivated Rectifier (JGD)
  • BY133G - General Purpose Rectifier (Yangzhou Yangjie)
  • BY133GP - Glass Passivated Rectifier (MCC)
  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1 Amp Rectifier (MCC)
Other Datasheets by UPM
  • BY133 - Sillicon Rectifier
  • BY127 - Sillicon Rectifier

Full PDF Text Transcription

Click to expand full text
BY133G 1.0 (25.4) MIN. .034 (0.9) DIA. .028 (0.7) .205 (5.2) .165 (4.2) 1.0 (25.4) MIN. .107 (2.7) DIA. .080 (2.0) DO-41 Dimensions in inches and (millimeters) Features ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified MAXIMUM RATINGS (TA=25°C unless otherwise noted) PARAMETER SYMBOL Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current VRRM VRMS VDC IF Peak forward surge current, 8.
