HL63102MG - AlGaInP Laser Diode

This page provides the datasheet information for the HL63102MG, a member of the HL63101MG AlGaInP Laser Diode family.

Datasheet Summary

Features

  • Optical output power: 5mW(CW).
  • Visible light output:637nm Typ.
  • Low operating current: 20mA Typ.
  • Low operating voltage: 2.4V Max.
  • Operating temperature: 60℃.
  • TE mode oscillation.
  • Single transverse mode.

📥 Download Datasheet

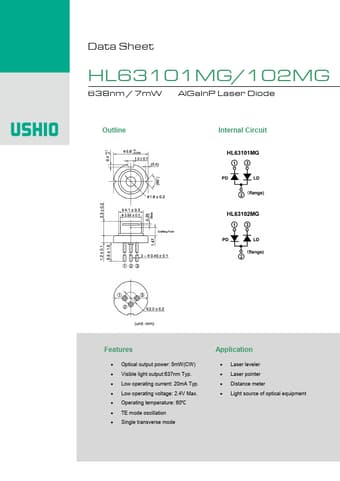

Datasheet preview – HL63102MG

Datasheet Details

Part number HL63102MG
Manufacturer USHIO
File Size 328.05 KB
Description AlGaInP Laser Diode
Datasheet download datasheet HL63102MG Datasheet
Additional preview pages of the HL63102MG datasheet.

📁 Similar Datasheet

  • HL6312G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6313G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6314MG - AlGaInP Laser Diode (Hitachi Semiconductor)
  • HL6323MG - AlGaInP Laser Diode (Hitachi)
  • HL6331G - (HL6332G) Low Operating Current Visible Laser Diode (Hitachi)
  • HL6333MG - (HL6334MG) Low Operating Current Visible Laser Diode (Hitachi)
  • HL6335G - (HL6336G) Circular Beam Low Operating Current (Hitachi)
  • HL6339G - (HL6342G) 633nm Lasing Laser Diode (Hitachi)
  • HL6339G - (HL6339G / HL6342G) 633nm Lasing Laser Diode (Hitachi Semiconductor)
  • HL6340MG - (HL6340MG / HL6341MG) Circular Beam Low Operating Current (Hitachi)
Other Datasheets by USHIO

Full PDF Text Transcription

Click to expand full text
Data Sheet HL63101MG/102MG 638nm / 7mW AlGaInP Laser Diode Outline Internal Circuit Features • Optical output power: 5mW(CW) • Visible light output:637nm Typ. • Low operating current: 20mA Typ. • Low operating voltage: 2.4V Max.
