HL6323MG - AlGaInP Laser Diode

Datasheet Summary

Description

The HL6323MG is a 0.63 µm band AlGaInP laser diode (LD) with a multi-quantum well (MQW) structure.

It is suitable as a longer distance operating range for laser markers and a higher speed for positioning control sensors.

Features

  • High output power Visible light output Small package TM mode oscillation : 35 mW (CW) : λp = 639 nm Typ : φ5.6 mm Pakage Type.
  • HL6323MG: MG Internal Circuit 1 3 PD LD 2 HL6323MG Absolute Maximum Ratings (TC = 25°C ± 3°C) Item Optical output power Optical output power (Puise) LD reverse voltage PD reverse voltage Operating temperature Storage temperature Symbol PO PO VR(LD) VR(PD) Topr Tstg Value 35.
  • 50.
  • 2 30.
  • 10 to +50.

📥 Download Datasheet

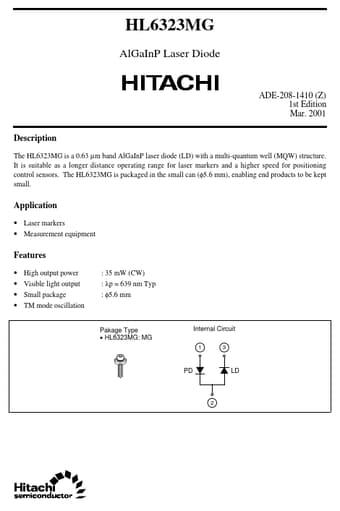

Datasheet preview – HL6323MG

Datasheet Details

Part number HL6323MG
Manufacturer Hitachi
File Size 36.42 KB
Description AlGaInP Laser Diode
Datasheet download datasheet HL6323MG Datasheet
Additional preview pages of the HL6323MG datasheet.

📁 Similar Datasheet

  • HL63290HD - AlGaInP Laser Diode (USHIO)
  • HL63101MG - AlGaInP Laser Diode (USHIO)
  • HL63102MG - AlGaInP Laser Diode (USHIO)
  • HL6312G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6313G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6314MG - AlGaInP Laser Diode (Hitachi Semiconductor)
  • HL6339G - (HL6339G / HL6342G) 633nm Lasing Laser Diode (Hitachi Semiconductor)
  • HL6342G - (HL6339G / HL6342G) 633nm Lasing Laser Diode (Hitachi Semiconductor)
  • HL601 - INFRARED EMITTING DIODES (KODENSHI)
  • HL602 - INFRARED EMITTING DIODE (KODENSHI KOREA)
Other Datasheets by Hitachi
  • HL6331G - (HL6332G) Low Operating Current Visible Laser Diode
  • HL6333MG - (HL6334MG) Low Operating Current Visible Laser Diode
  • HL6335G - (HL6336G) Circular Beam Low Operating Current
  • HL6339G - (HL6342G) 633nm Lasing Laser Diode
  • HL6340MG - (HL6340MG / HL6341MG) Circular Beam Low Operating Current
  • HL6341MG - (HL6340MG / HL6341MG) Circular Beam Low Operating Current
  • HL6503MG - Visible High Power Laser Diode for DVD-RAM
  • HL6714G - AlGaInP Laser Diode

Full PDF Text Transcription

Click to expand full text
HL6323MG AlGaInP Laser Diode ADE-208-1410 (Z) 1st Edition Mar. 2001 Description The HL6323MG is a 0.63 µm band AlGaInP laser diode (LD) with a multi-quantum well (MQW) structure. It is suitable as a longer distance operating range for laser markers and a higher speed for positioning control sensors. The HL6323MG is packaged in the small can (φ5.6 mm), enabling end products to be kept small. Application • Laser markers • Measurement equipment Features • • • • High output power Visible light output Small package TM mode oscillation : 35 mW (CW) : λp = 639 nm Typ : φ5.
