HL601 - INFRARED EMITTING DIODES

Datasheet Summary

Features

  • 2.8(L)×1.4×0.9(H)mm Small and surface mount package.
  • 　 Pb free.
  • Reflow soldering.

📥 Download Datasheet

Datasheet preview – HL601

Datasheet Details

Part number HL601
Manufacturer KODENSHI
File Size 118.11 KB
Description INFRARED EMITTING DIODES
Datasheet download datasheet HL601 Datasheet
Additional preview pages of the HL601 datasheet.

📁 Similar Datasheet

  • HL602 - INFRARED EMITTING DIODE (KODENSHI KOREA)
  • HL6111RFNWP5 - 5W WPC Wireless Power Receiver (HALO)
  • HL63101MG - AlGaInP Laser Diode (USHIO)
  • HL63102MG - AlGaInP Laser Diode (USHIO)
  • HL6312G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6313G - (HL6312G / HL6313G) AlGaInP Laser Diodes (Hitachi Semiconductor)
  • HL6314MG - AlGaInP Laser Diode (Hitachi Semiconductor)
  • HL6323MG - AlGaInP Laser Diode (Hitachi)
  • HL63290HD - AlGaInP Laser Diode (USHIO)
  • HL6331G - (HL6332G) Low Operating Current Visible Laser Diode (Hitachi)
Other Datasheets by KODENSHI
  • HL615 - INFRARED EMITTING DIODES

Full PDF Text Transcription

Click to expand full text

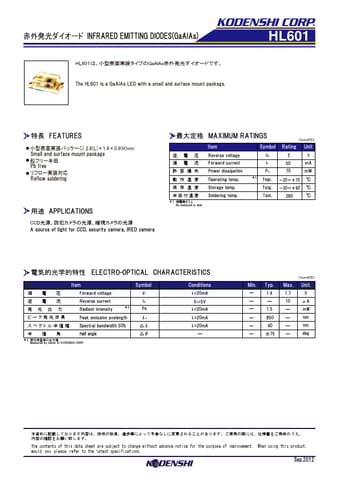

INFRARED EMITTING DIODES(GaAlAs) HL601、GaAlAs。 The HL601 is a GaAlAs LED with a small and surface mount package. HL601 FEATURES ● 2.8(L)×1.4×0.9(H)mm Small and surface mount package ● 　 Pb free ● Reflow soldering APPLICATIONS CCD、、 A source of light for CCD, security camera, IRED camera MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Reverse voltage Forward current VR 5 V IF 50 mA ＊1. No icebound or dew Power dissipation Operating temp. Storage temp. Soldering temp. PD ＊1 Topr. Tstg. Tsol. 70 mW －20～＋70 ℃ －30～＋90 ℃ 260 ℃ ELECTRO-OPTICAL　CHARACTERISTICS Item 　　　　 Forward voltage 　　　　 　　　 Reverse current Radiant intensity ＊2 Peak emission avelength Spectral bandwidth 50% 　　　　 Half angle ＊2. Measured by tester of KODENSHI CORP.
