A1012 2SA1012

A1012 Description

UNISONIC TECHNOLOGIES CO., LTD 2SA1012 PNP SILICON TRANSISTOR HIGH CURRENT SWITCHING APPLICATION .1 TO- 251 .

A1012 Features

* Low collector saturation voltage VCE(SAT)=-0.4V(max. ) at Ic=-3A
* High speed switching time: tS=1.0µs(Typ. )
* Complementary to 2SC2562 1 1 TO - 252 TO-220 1 TO-220F
* Pb-free plating product number: 2SA1012L ORDERING INFORMATION Order Number Normal Lead Free Plating 2SA1012-x-T

📥 Download Datasheet

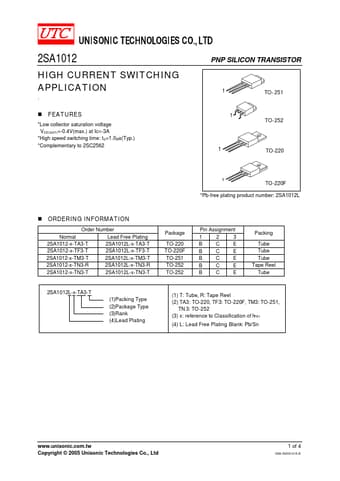

Preview of A1012 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1012
Manufacturer
UTC
File Size
133.31 KB
Datasheet
A1012-UTC.pdf
Description
2SA1012
