LM317L - LOW CURRENT 1.25V TO 37V ADJUSTABLE VOLTAGE REGULATOR

LM317L Description

UNISONIC TECHNOLOGIES CO., LTD LM317L LINEAR INTEGRATED CIRCUIT LOW CURRENT 1.25V TO 37V ADJUSTABLE VOLTAGE REGULATOR * .
The UTC LM317L is a monolithic integrated circuit, designed to supply 100mA of output current with voltage adjustable from 1. FEATURES.

LM317L Features

* Output voltage adjustable from 1.25V ~ 37V.
* Output current in excess of 100mA
* Internal thermal overload protection
* Internal short circuit current limiting
* Output transistor safe area compensation
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package

📥 Download Datasheet

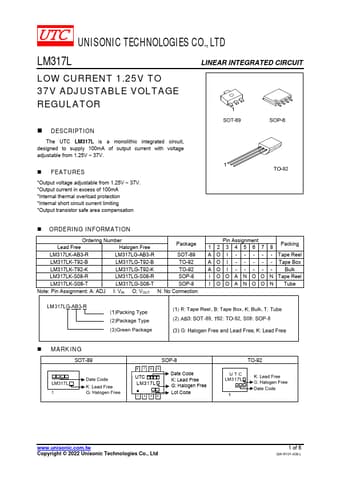

Preview of LM317L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM317L
Manufacturer
UTC
File Size
423.17 KB
Datasheet
LM317L-UTC.pdf
Description
LOW CURRENT 1.25V TO 37V ADJUSTABLE VOLTAGE REGULATOR
