LR3865

2A LOW DROPOUT LINEAR REGULATOR

UTC

LR3865 Features

* include ultra low dropout voltage, current limiting protection, thermal shutdown protection and high ripple rejection ratio.

* FEATURES

* 2A Guaranteed Output Current

* 0.5μA Shutdown Current

* Current Limiting Protection

* Thermal Shutdown Protection

* Excellent Line/Load T

LR3865 General Description

The UTC LR3865 belonged to low-dropout, linear regulators operate from 2.5V to 6V input and are guaranteed to deliver 2A. Wide range of preset output voltage options are available. Built-in low on-resistance transistor provides low dropout voltage and large output current. The UTC LR3865 is designed.

LR3865 Datasheet (206.18 KB)

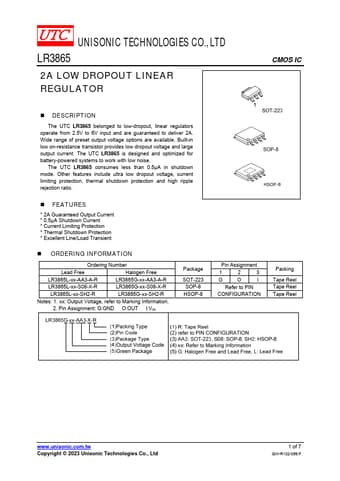

LR3865 Datasheet Preview — Preview of LR3865 PDF

Datasheet Details

Part number:

LR3865

Manufacturer:

UTC

File Size:

206.18 KB

Description:

2a low dropout linear regulator.
