LR38620 - Timing Generator IC

LR38620 Description

BACK LR38620 LR38620 .
The LR38620 is a CMOS timing generator IC which generates timing pulses for driving 4 200 kpixel CCD area sensor and processing pulses.

LR38620 Features

* Designed for 1/1.8-type 4 200 k-pixel CCD area sensor
* Frequency of driving horizontal CCD : 24.54545 MHz
* In monitoring mode, it can be obtained 30 fields/s
* External shutter control function with serial data input is possible
* +3.3 V and +4.5 V power s

📥 Download Datasheet

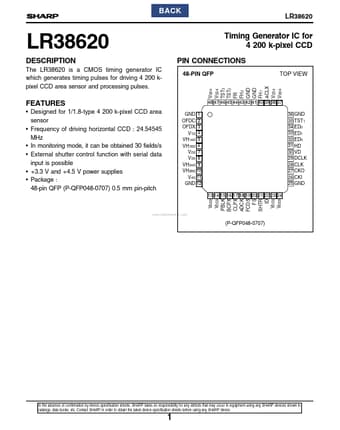

Preview of LR38620 PDF
