LR38630

Digital Signal Processor for CIF CMOS Image Cameras

Sharp

LR38630 Features

* Designed for 110 k-pixel color CMOS image sensors with R, G, and B color mosaic filters

* Compatible with CIF standard

* External control interface input/output

* Variable GAMMA and KNEE response

* 8-bit digital input

* Available for digital video 4

LR38630 General Description

The LR38630 is a CMOS digital signal processor for color camera systems of 110 k-pixel CMOS image sensor with primary color mosaic filters. The camera system consists of CIF CMOS image sensor (LZ34C10) and DSP IC (LR38630) with 2 kbit EEPROM. Depending on application, 1 M-bit SRAM can be added in or.

LR38630 Datasheet (78.77 KB)

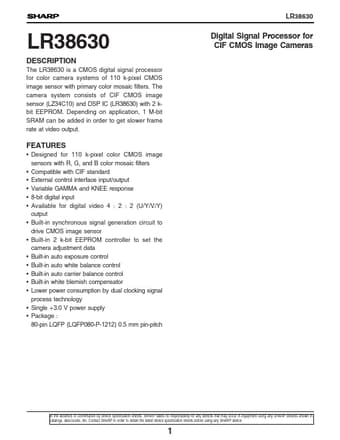

LR38630 Datasheet Preview — Preview of LR38630 PDF

Datasheet Details

Part number:

LR38630

Manufacturer:

Sharp

File Size:

78.77 KB

Description:

Digital signal processor for cif cmos image cameras.
