PZTA43 Datasheet, Transistor, UTC

PZTA43 Features

• Transistor
• Collector-emitter voltage: VCEO=300V (UTC PZTA42) VCEO=200V (UTC PZTA43)
• High current gain
• Complement to UTC PZTA92/93
• Collector power dissipatio

PDF File Details

Part number:

PZTA43

Manufacturer:

UTC

File Size:

153.72kb

Download:

📄 Datasheet

Description:

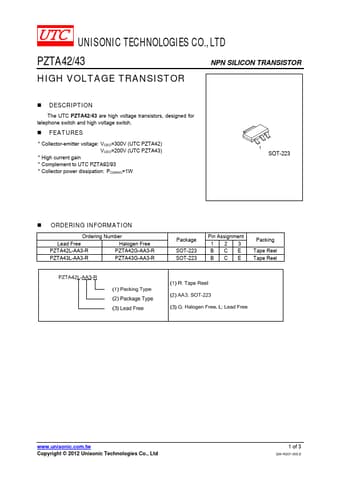

High voltage transistor. The UTC PZTA42/43 are high voltage transistors, designed for telephone switch and high voltage switch.

FEATURES

C

TAGS

PZTA43

UTC
