PZTA13 NPN Silicon Darlington Transistors

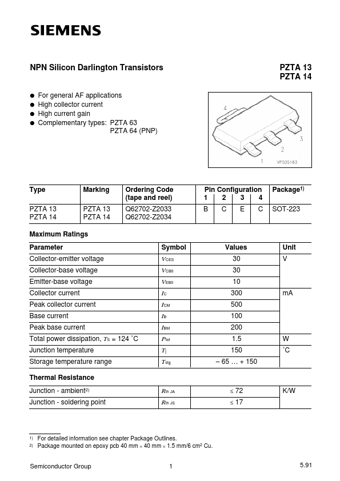

NPN Silicon Darlington Transistors PZTA 13 PZTA 14 For general AF applications q High collector current q High current gain q Complementary types: PZTA 63 PZTA 64 (PNP) q Type PZTA 13 PZTA 14 Marking PZTA 13 PZTA 14 Ordering Code (tape and reel) Q62702-Z2033 Q62702-Z2034 Pin Configuration 1 2 3 4 B C E C Package1) SOT-223 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current .
