PZT2222 NPN Silicon Switching Transistors

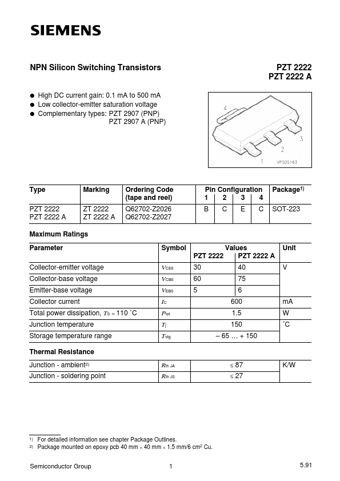

NPN Silicon Switching Transistors PZT 2222 PZT 2222 A High DC current gain: 0.1 mA to 500 mA q Low collector-emitter saturation voltage q Complementary types: PZT 2907 (PNP) PZT 2907 A (PNP) q Type PZT 2222 PZT 2222 A Marking ZT 2222 ZT 2222 A Ordering Code (tape and reel) Q62702-Z2026 Q62702-Z2027 Pin Configuration 1 2 3 4 B C E C Package1) SOT-223 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Total power dissipation, T.

PZT2222_SiemensSemiconductorGroup.pdf

Preview of PZT2222 PDF
PZT2222 Datasheet Preview Page 2 PZT2222 Datasheet Preview Page 3

Datasheet Details

Part number:

PZT2222

Manufacturer:

Siemens Semiconductor Group

File Size:

126.78 KB

Description:

Npn silicon switching transistors.
