PZT2907AT1 Datasheet - Motorola

PZT2907AT1 PNP Silicon Epitaxial Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA PNP Silicon Epitaxial Transistor This PNP Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is designed for medium power surface mount applications. NPN Complement is PZT2222AT1 The SOT-223 package can be soldered using wave or reflow SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows visual insp.

PZT2907AT1-Motorola.pdf

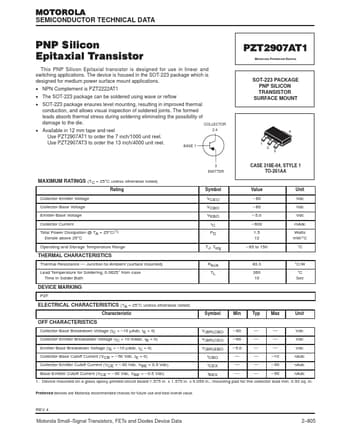

Preview of PZT2907AT1 PDF
PZT2907AT1 Datasheet Preview Page 2 PZT2907AT1 Datasheet Preview Page 3

Datasheet Details

Part number:

PZT2907AT1

Manufacturer:

Motorola

File Size:

46.31 KB

Description:

Pnp silicon epitaxial transistor.
