PZTA42T1 Datasheet - Motorola

PZTA42T1 High Voltage Transistor

MOTOROLA SEMICONDUCTOR TECHNICAL DATA High Voltage Transistor Surface Mount NPN Silicon COLLECTOR 2,4 BASE 1 EMITTER 3 PZTA42T1 Motorola Preferred Device SOT 223 PACKAGE NPN SILICON HIGH VOLTAGE TRANSISTOR SURFACE MOUNT MAXIMUM RATINGS Rating Symbol Value Unit 4 Collector-Emitter Voltage (Open Base) Collector-Base Voltage (Open Emitter) Emitter-Base Voltage (Open Collector) Collector Current (DC) Total Power Dissipation @ TA = 25°C(1) Storage Temperature Range Junction Tempera.

PZTA42T1-Motorola.pdf

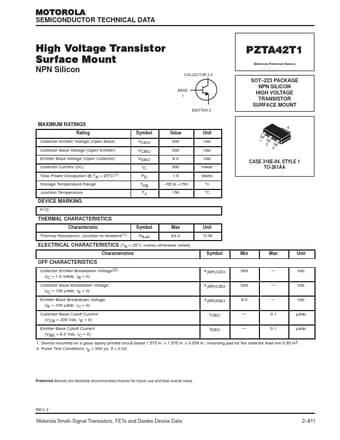

Preview of PZTA42T1 PDF
PZTA42T1 Datasheet Preview Page 2

Datasheet Details

Part number:

PZTA42T1

Manufacturer:

Motorola

File Size:

25.78 KB

Description:

High voltage transistor.
