PZT2222AT1 Datasheet - Motorola

PZT2222AT1 NPN Silicon Planar Epitaxial Transistor

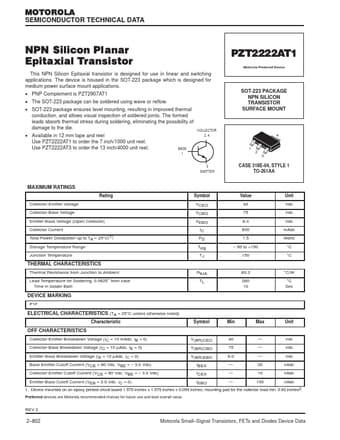

MOTOROLA SEMICONDUCTOR TECHNICAL DATA NPN Silicon Planar Epitaxial Transistor This NPN Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is designed for medium power surface mount applications. PNP Complement is PZT2907AT1 The SOT-223 package can be soldered using wave or reflow. SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows vis.

PZT2222AT1-Motorola.pdf

Preview of PZT2222AT1 PDF
PZT2222AT1 Datasheet Preview Page 2 PZT2222AT1 Datasheet Preview Page 3

Datasheet Details

Part number:

PZT2222AT1

Manufacturer:

Motorola

File Size:

34.36 KB

Description:

Npn silicon planar epitaxial transistor.
