PZT2222A

NPN switching transistor

PZT2222A Features

* High current (max. 600 mA)

* Low voltage (max. 40 V). APPLICATIONS

* Switching and linear amplification. DESCRIPTION NPN switching transistor in a SOT223 plastic package. PNP complement: PZT2907A. handbook, halfpage PZT2222A PINNING PIN 1 2, 4 3 base collector emitter DESC

PZT2222A General Description

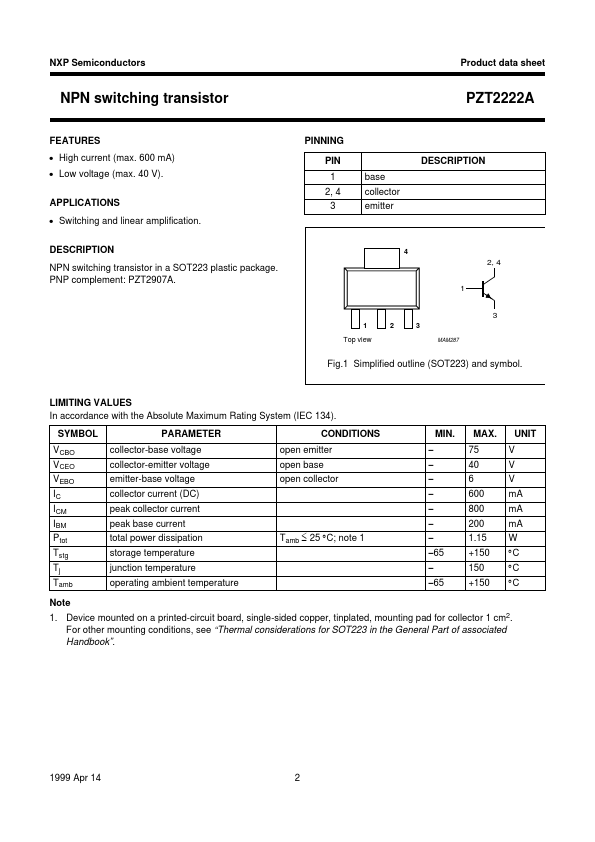

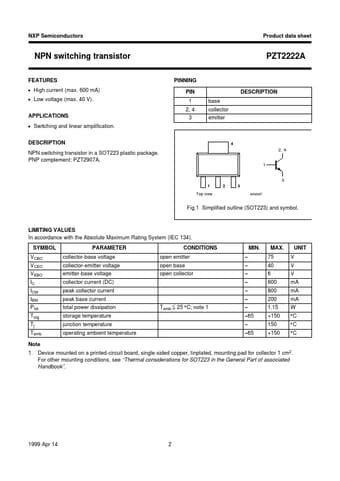

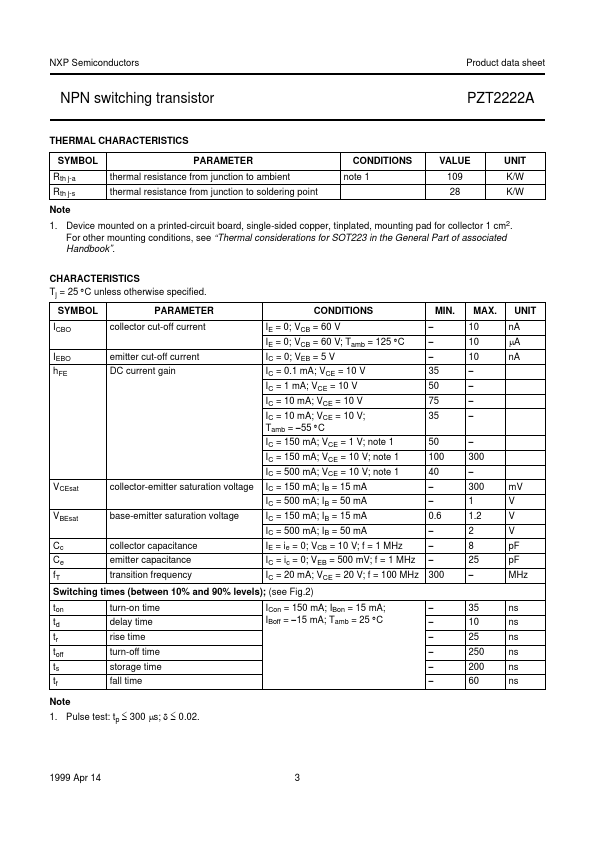

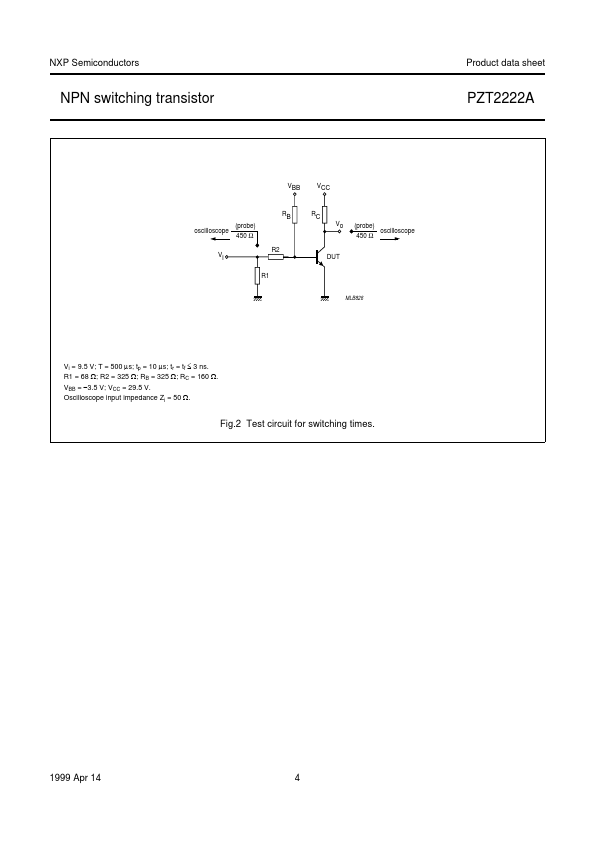

NPN switching transistor in a SOT223 plastic package. PNP complement: PZT2907A. handbook, halfpage PZT2222A PINNING PIN 1 2, 4 3 base collector emitter DESCRIPTION 4 2, 4 1 3 1 Top view 2 3 MAM287 Fig.1 Simplified outline (SOT223) and symbol. LIMITING VALUES In accordance with the Absolute Maxi.

PZT2222A Datasheet (46.69 KB)

Preview of PZT2222A PDF

Datasheet Details

Part number:

PZT2222A

Manufacturer:

NXP ↗

File Size:

46.69 KB

Description:

Npn switching transistor.
DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D087 PZT2222A NPN switching transistor Product specification Supersedes data of 1997 Jun 02 .
