PZT159 PNP Silicon Planar High Current Transistor

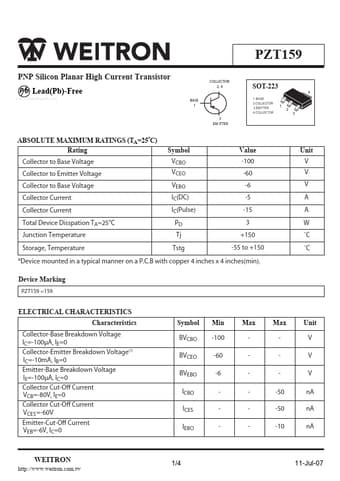

PZT159 PNP Silicon Planar High Current Transistor P b Lead(Pb)-Free www.DataSheet4U.net COLLECTOR 2, 4 BASE 1 3 EM ITTER SOT-223 1. BASE 2.COLLECTOR 3.EMITTER 4.COLLECTOR 4 1 2 3 ABSOLUTE MAXIMUM RATINGS (TA=25 C) Rating Collector to Base Voltage Collector to Emitter Voltage Collector to Base Voltage Collector Current Collector Current Total Device Disspation TA=25°C Junction Temperature Storage, Temperature Symbol VCBO VCEO VEBO IC(DC) IC(Pulse) PD Tj Tstg Value -100 -60 -6 -5 -15 3 +15.

PZT159_WeitronTechnology.pdf

Preview of PZT159 PDF
PZT159 Datasheet Preview Page 2 PZT159 Datasheet Preview Page 3

Datasheet Details

Part number:

PZT159

Manufacturer:

Weitron Technology

File Size:

618.12 KB

Description:

Pnp silicon planar high current transistor.
