PZTA44 Datasheet (Weitron Technology) - NPN Silicon Planar Epitaxial Transistor

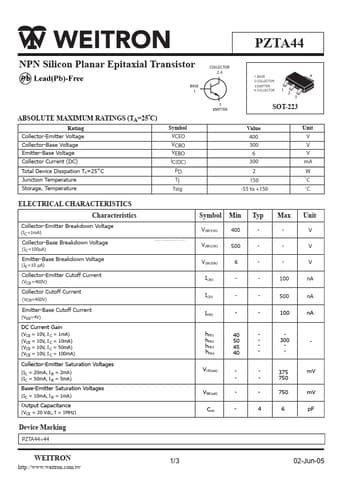

PZTA44, NPN Silicon Planar Epitaxial Transistor

PZTA44 NPN Silicon Planar Epitaxial Transistor BASE 1 3 EMITTER COLLECTOR 2, 4 1.

BASE 2.COLLECTOR 3.EMITTER 4.COLLECTOR 4 1 2 3 SOT-223 Value 400 500 6 300 2 150 -55 to +150 Unit V V V mA W ˚C ˚C ABSOLUTE MAXIMUM RATINGS (TA=25 C) Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current (DC) Total Device Disspation TA=25˚C Junction Temperature Storage, Temperature Symbol VCEO VCBO VEBO IC(DC) PD Tj Tstg ELECTRICAL CHARACTERISTICS Characteristics Colle
