PZTA43 Datasheet - Siemens Semiconductor Group

PZTA43 - NPN Silicon High-Voltage Transistors

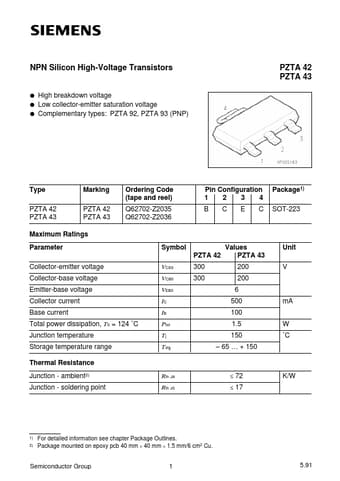

NPN Silicon High-Voltage Transistors PZTA 42 PZTA 43 High breakdown voltage q Low collector-emitter saturation voltage q Complementary types: PZTA 92, PZTA 93 (PNP) q Type PZTA 42 PZTA 43 Marking PZTA 42 PZTA 43 Ordering Code (tape and reel) Q62702-Z2035 Q62702-Z2036 Pin Configuration 1 2 3 4 B C E C Package1) SOT-223 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Base current Total power dissipation, TS = 124 ˚C Junction

PZTA43_SiemensSemiconductorGroup.pdf

Preview of PZTA43 PDF
PZTA43 Datasheet Preview Page 2 PZTA43 Datasheet Preview Page 3

Datasheet Details

Part number:

PZTA43

Manufacturer:

Siemens Semiconductor Group

File Size:

127.22 KB

Description:

Npn silicon high-voltage transistors.
