PZT194 - Silicon Planar Medium Power Transistor

SeCoS

📥 Download Datasheet

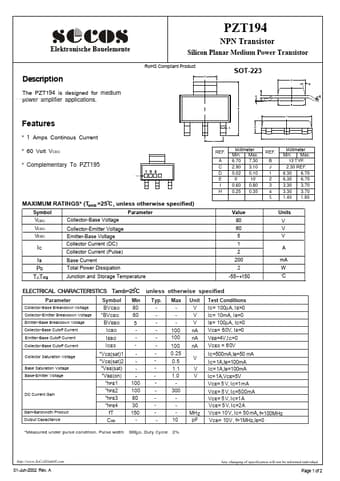

PZT194 Datasheet Preview — Preview of PZT194 PDF

datasheet Preview Page 2

Datasheet Details

Part number	PZT194
Manufacturer	SeCoS
File Size	810.09 KB
Description	Silicon Planar Medium Power Transistor
Datasheet	PZT194_SeCoS.pdf

PZT194 Product details

Description

www.DataSheet4U.net power amplifier SOT-223 The PZT194 is designed for medium applications.

Features

1 Amps Continous Current.
60 Volt VCEO.
Complementary To PZT195 Date Code REF. A C D E I H 1 9 4 B o C E Millimeter Min. Max. 6.70 7.30 2.90 3.10 0.02 0.10 0 10 0.60 0.80 0.25 0.35 REF. B J 1 2 3 4 5.
