PZTA14T1 NPN Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

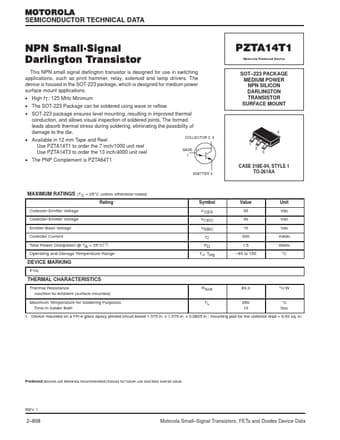

MOTOROLA SEMICONDUCTOR TECHNICAL DATA NPN SmallĆSignal Darlington Transistor This NPN small signal darlington transistor is designed for use in swit.

📥 Download Datasheet

Preview of PZTA14T1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PZTA14T1
Manufacturer
Motorola
File Size
52.78 KB
Datasheet
PZTA14T1-Motorola.pdf
Description
NPN Transistor

Applications

* such as print hammer, relay, solenoid and lamp drivers. The device is housed in the SOT-223 package, which is designed for medium power surface mount applications.
* High fT : 125 MHz Minimum
* The SOT-223 Package can be soldered using wave or reflow.
* SOT-223 package ens
