SK1816M - BIPOLAR LATCH TYPE HALL EFFECT

Product Overview

UTC

📥 Download Datasheet

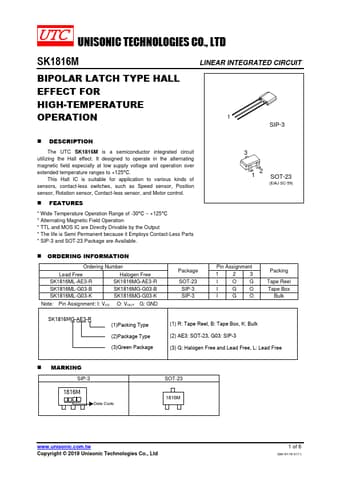

SK1816M BIPOLAR LATCH TYPE HALL EFFECT by UTC - Datasheet Preview — Datasheet preview – SK1816M

Datasheet Details

Part number	SK1816M
Manufacturer	UTC
File Size	259.84 KB
Description	BIPOLAR LATCH TYPE HALL EFFECT
Datasheet	SK1816M Datasheet
Additional preview pages of the SK1816M datasheet.

Product details

Description

The UTC SK1816M is a semiconductor integrated circuit utilizing the Hall effect.

Features

Wide Temperature Operation Range of -30°С ~ +125°С.
Alternating Magnetic Field Operation.
TTL and MOS IC are Directly Drivable by the Output.
The life is Semi Permanent because it Employs Contact-Less Parts.
SIP-3 and SOT-23 Package are Available. 3 1 2 SOT-23 (EIAJ SC-59).
