SK1288 - 2-PHASE DC-FAN MOTOR DRIVER

SK1288 Description

www.DataSheet4U.com UNISONIC TECHNOLOGIES CO., LTD SK1288 2-PHASE DC-FAN MOTOR DRIVER LINEAR INTEGRATED CIRCUIT .
SK1288 is a 2-Phase driver for DC-Fan motor .

SK1288 Features

* Wide supply voltage range of 2.5V to 20V
* Output current Io(max)=600mA
* Operate with Hall element
* Lock protection
* Auto-restart when the motor lock is undone
* FG(frequency generator) output
* SOP-8 package
* Pb-free plating product number: SK1288L ORDERING INFORMAT

📥 Download Datasheet

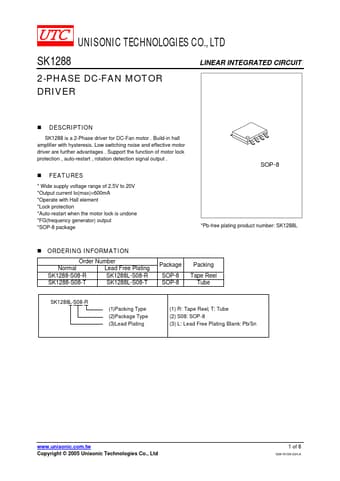

Preview of SK1288 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK1288
Manufacturer
UTC
File Size
99.46 KB
Datasheet
SK1288_UTC.pdf
Description
2-PHASE DC-FAN MOTOR DRIVER
