U74AHC1G08 - 2-INPUT AND GATE

Datasheet Summary

Description

The UTC U74AHC1G08 is a high-speed si-gate CMOS device which provides the 2-input AND function.

Features

  • S.
  • Operation Voltage Range: 2~5.5V.
  • Low Power Current: ICC=10μA(Max).
  • High speed: tPD=4.3ns(Typ) @ VCC =5V CMOS IC.

📥 Download Datasheet

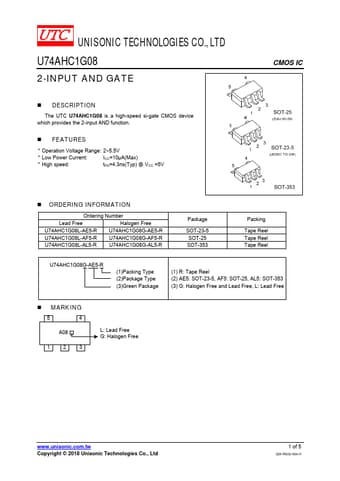

Datasheet preview – U74AHC1G08

Datasheet Details

Part number U74AHC1G08
Manufacturer UTC
File Size 151.68 KB
Description 2-INPUT AND GATE
Datasheet download datasheet U74AHC1G08 Datasheet
Additional preview pages of the U74AHC1G08 datasheet.

📁 Similar Datasheet

  • U74AHC1G02 - 2-INPUT NOR GATE (Unisonic Technologies)
  • U74AHC1G04 - SINGLE INVERTER GATE (Unisonic Technologies)
  • U74AHC1G06 - INVERTER (Unisonic Technologies)
  • U74AHC1G07 - BUFFER (Unisonic Technologies)
  • U74AHC1G09 - 2-INPUT AND GATE (Unisonic Technologies)
  • U74AHC1G125 - SINGLE BUS BUFFER GATE (Unisonic Technologies)
  • U74AHC1G126 - SINGLE BUS BUFFER GATE (Unisonic Technologies)
  • U74AHC1G14 - SINGLE SCHMITT-TRIGGER INVERTER GATE (Unisonic Technologies)
  • U74AHC1G32 - SINGLE 2-INPUT POSITIVE-OR GATE (Unisonic Technologies)
  • U74AHC1G34 - SINGLE NON-INVERTING GATE (Unisonic Technologies)
Other Datasheets by UTC

Full PDF Text Transcription

Click to expand full text
UNISONIC TECHNOLOGIES CO., LTD U74AHC1G08 2-INPUT AND GATE  DESCRIPTION The UTC U74AHC1G08 is a high-speed si-gate CMOS device which provides the 2-input AND function.  FEATURES * Operation Voltage Range: 2~5.5V * Low Power Current: ICC=10μA(Max) * High speed: tPD=4.3ns(Typ) @ VCC =5V CMOS IC  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74AHC1G08L-AE5-R U74AHC1G08G-AE5-R U74AHC1G08L-AF5-R U74AHC1G08G-AF5-R U74AHC1G08L-AL5-R U74AHC1G08G-AL5-R Package SOT-23-5 SOT-25 SOT-353 Packing Tape Reel Tape Reel Tape Reel U74AHC1G08G-AE5-R (1)Packing Type (2)Package Type (3)Green Package (1) R: Tape Reel (2) AE5: SOT-23-5, AF5: SOT-25, AL5: SOT-353 (3) G: Halogen Free and Lead Free, L: Lead Free  MARKING 54 A08 123 L: Lead Free G: Halogen Free www.unisonic.
