UC2000D

HIGH PRECISION LOW COST MCM POWER SWITCH

UC2000D Datasheet (197.08 KB)

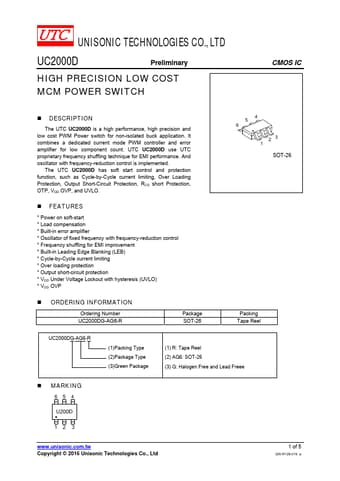

Preview of UC2000D PDF

Datasheet Details

Part number:

UC2000D

Manufacturer:

UTC

File Size:

197.08 KB

Description:

High precision low cost mcm power switch.

UC2000D Features

* Power on soft-start

* Load compensation

* Built-in error amplifier

* Oscillator of fixed frequency with frequency-reduction control

* Frequency shuffling for EMI improvement

* Built-in Leading Edge Blanking (LEB)

* Cycle-by-Cycle current limiting

* Over loading prot

UC2000D General Description

The UTC UC2000D is a high performance, high precision and low cost PWM Power switch for non-isolated buck application. It combines a dedicated current mode PWM controller and error amplifier for low component count. UTC UC2000D use UTC proprietary frequency shuffling technique for EMI performance. A.
