UC2526

Regulating Pulse Width Modulator

Unitrode

UC2526 Features

* 8 To 35V Operation

* 5V Reference Trimmed To ±1%

* 1Hz To 400kHz Oscillator Range

* Dual 100mA Source/Sink Outputs

* Digital Current Limiting

* Double Pulse Suppression

* Programmable Deadtime

* Under-Voltage Lockout

* Single

UC2526 General Description

The UC1526 is a high performance monolithic pulse width modulator circuit designed for fixed-frequency switching regulators and other power control applications. Included in an 18-pin dual-in-line package are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, pulse wi.

UC2526 Datasheet (608.43 KB)

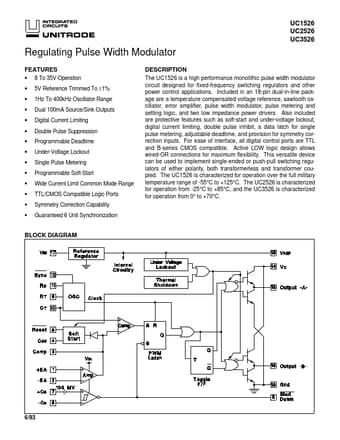

UC2526 Datasheet Preview — Preview of UC2526 PDF

Datasheet Details

Part number:

UC2526

Manufacturer:

Unitrode

File Size:

608.43 KB

Description:

Regulating pulse width modulator.
