UC2526A

Regulating Pulse Width Modulator

Unitrode

UC2526A Features

* Reduced Supply Current

* Oscillator Frequency to 600kHz

* Precision Band-Gap Reference

* 7 to 35V Operation

* Dual 200mA Source/Sink Outputs

* Minimum Output Cross-Conduction

* Double-Pulse Suppression Logic

* Under-Voltage Lockout

UC2526A General Description

The UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- “A” versions in all applications. Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dea.

UC2526A Datasheet (598.04 KB)

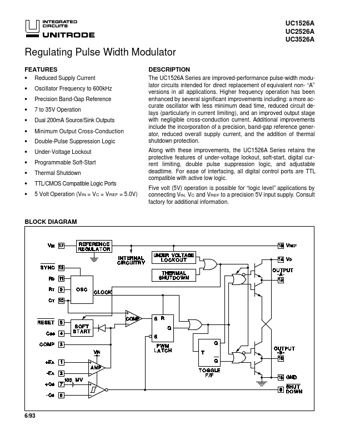

UC2526A Datasheet Preview — Preview of UC2526A PDF

Datasheet Details

Part number:

UC2526A

Manufacturer:

Unitrode

File Size:

598.04 KB

Description:

Regulating pulse width modulator.
