UC2527A, UC2525A - Regulating Pulse Width Modulators

UC2527A Description

Product Folder Order Now Technical Documents Tools & Software Support & Community UC1525A, UC1527A, UC2525A UC2527A, UC3525A, UC3527A SLUS191D The UC1525A/1527A series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when.

UC2527A Features

* 1 8-V to 35-V Operation
* 5.1-V Reference Trimmed to 1%
* 100-Hz to 500-kHz Oscillator Range
* Separate Oscillator Sync Terminal
* Adjustable Dead-Time Control
* Internal Soft Start
* Pulse-by-Pulse Shutdown
* Input Undervoltage Lockou

UC2527A Applications

* Off-Line and DC/DC Power Supplies
* Converters Using Voltage Mode
* Single-Ended or Two-Switch Topology Designs
* Solar Inverters
* Welding Inverters
* Motor Control
* Battery Chargers Block Diagram OSC VREF OUT 16 4 +VIN 15 GROUND 12 SYNC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UC2527A, UC2525A. Please refer to the document for exact specifications by model.

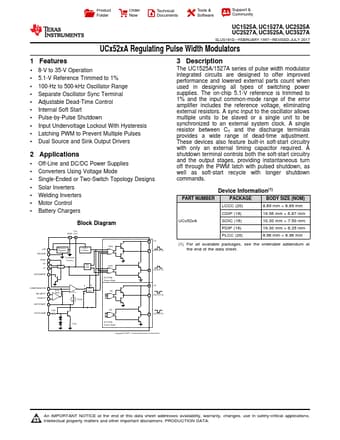

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC2527A, UC2525A
Manufacturer
Texas Instruments ↗
File Size
962.08 KB
Datasheet
UC2525A-etcTI.pdf
Description
Regulating Pulse Width Modulators
Note
This datasheet PDF includes multiple part numbers: UC2527A, UC2525A.
Please refer to the document for exact specifications by model.
