UC2306 Datasheet, Converters, Unisonic Technologies

UC2306 Features

  • Converters
  • In shutdown mode:10μA quiescent current.
  • Low battery detector active
  • Minimum Operating Voltage: 1.5V
  • Very Low VCESAT: 370mV@1A (typ).
  • In act

PDF File Details

Part number:

UC2306

Manufacturer:

Unisonic Technologies

File Size:

529.51kb

Download:

📄 Datasheet

Description:

Micropower dc/dc converters. The UTC UC2306 is a step-up DC/DC converter which operate from a wide input supply range of 1.5V to 8V. Its peak switch current can b

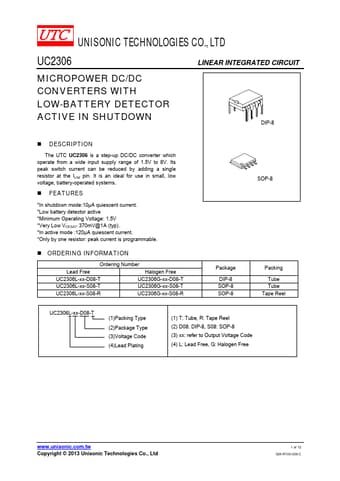

Datasheet Preview: UC2306 📥 Download PDF (529.51kb)
Page 2 of UC2306 Page 3 of UC2306
