UCC36451 Datasheet, Converter, UTC

UCC36451 Features

  • Converter
  • Wide 8V~36V Operating Input Range
  • Integrated 75mΩ high side Power MOSFET Switches
  • Output Adjustable: VFB (1.00V±2%).
  • Up to 95% Efficiency

PDF File Details

Part number:

UCC36451

Manufacturer:

UTC

File Size:

399.04kb

Download:

📄 Datasheet

Description:

36v 4.5a synchronous buck converter. The UTC UCC36451 is a monolithic synchronous buck regulator. The device integrates internal high side and external low side power MOS

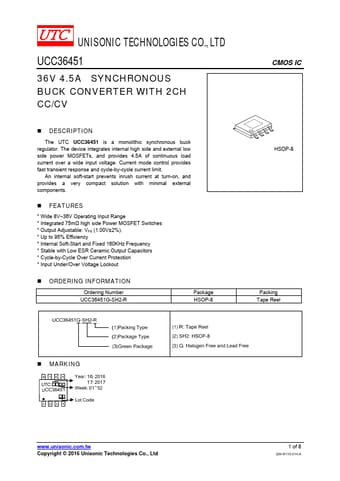

Datasheet Preview: UCC36451 📥 Download PDF (399.04kb)
