UH4K Datasheet - UTC

UH4K DUAL DIGITAL TRANSISTORS

UH4K Features

* Two DTC114T chips in a SOT-363 package.

* EQUIVALENT CIRCUIT

* ORDERING INFORMATION Ordering Number UH4KG-AL6-R Note: Pin Assignment: B: Base Package 1 SOT-363 E1 C: Collector E: Emitter Pin Assignment 2345 B1 C2 E2 B2 6 C1 UH4KG-AL6-R (1)Packing Type (1) R: Tape Reel (2)P

UH4K-UTC.pdf

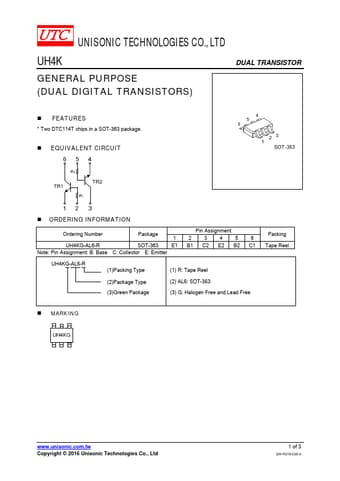

Preview of UH4K PDF
UH4K Datasheet Preview Page 2 UH4K Datasheet Preview Page 3

Datasheet Details

Part number:

UH4K

Manufacturer:

UTC

File Size:

155.35 KB

Description:

Dual digital transistors.
